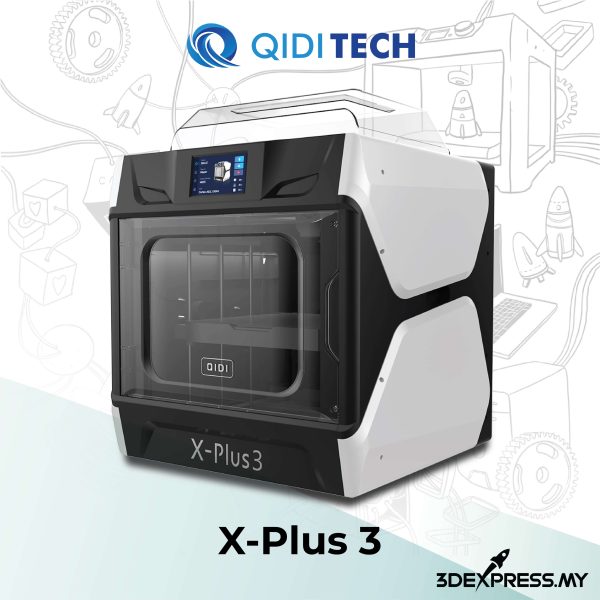

Qidi Tech X-Plus 3

RM3,999.00

QIDI Tech
X-PLUS 3

-Faster Speed 600mm/s
-Bigger than bigger 280*280*270 mm
-High-Flow 35mm³/s
-Acceleration: 20000mm/s²

Check on our Shopping Page for the latest Promo!

Availability: 1 in stock

Availability: 1 in stock



For more information, please visit our official wiki(wiki.qidi3d.com).

Specifications

Printers X-Max3 X-Plus3 X-Smart3
Build Volume
(W×D×H)
325*325*315mm 280*280*270mm 175*180*170mm
Dimensions
(W×D×H)
553*553*601mm 511*527*529mm 370*362*397mm
Net weight
(kg)
30.2 24.3 10.5
Printing Speed ≤600mm/s ≤500mm/s
Extruder Flow: 35mm³/s
@PLA Matte(Model:150*150mm single wall; Material: PLA Rapido Matte;Temperature: 240℃)
30mm³/s
Extruder Temp ≤350°C ≤300°C
Hotend (Included) Copper alloy nozzle hotend
For Common materials
Brass Nozzle
hotend
Hardened steel nozzle hotend
For Abrasive materials
Auxiliary Part Cooling Fan
Chamber Temperature Control 65°C Independent Chamber Heating 65°C Independent Chamber Heating
Chamber Circulation Fan
With Activated carbon air filter
Chamber Circulation Fan Chamber Circulation Fan
Screen 5.0 inch 4.3 inch
800*480 touch screen 480*272 touch screen
Seal print Dryer Box + Desiccant Optional
Connection Options 150M 2.4G Wi-Fi
USB Flash Drive/Ethernet Cable
150M 2.4G Wi-Fi
USB Flash Drive
Rated Power 900W 800W 350W
Recommended Filament PAHT-CF,PET-CF,PA12-CF PLA
Compatible filament PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc. ABS, ASA, PETG, TPU etc
Structure CoreXY
Z Axis: Double Z axis
X axis High-grade hardness steel linear hollow optical axis Hardened Wear-resistant Carbon Fiber Rod
Firmware: Klipper
Printing Acceleration: 20000mm/s²
Printing Accuracy: ±0.1 mm
Filament diameter: 1.75mm
Bed Leveling: Automatic Leveling
Extruder transmission ratio 9.5:1
Hot end: Ceramic Heating Core
Extruder: High-flow Direct Drive Extruder
Nozzle diameter: 0.4mm (0.2,0.6,0.8mm Optional)
Hot bed temperature: ≤120℃
Printing Plate: Double-Sided Flexible Magnetic HF Plate
Filament Detection: Yes
Resonance Compensation: Yes
Pressure Advance: Yes
Voltage: 100-240VAC, 50/60Hz
Main Processor: Cortex-A53,64-bit Processor
1.5Ghz,8G-EMMC,1G DDR3
Slicer: QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.
Operating System: Windows, MacOS, Linux
Assembled Assembled and First Print within 10 minutes
Learn more Learn more Learn more
Weight 25 kg
Dimensions 52 × 53 × 53 cm
