Bambu Lab P1S Series
Bambu Lab P1S
Perfected your printing capability
Redefine the possibilities of additive manufacturing. With the new Bambu Lab P1S, it has never been easier to 3D print your dream and customize your own 3D printer.
Fully loaded with advanced features
Product Features
Comparision of P1S and P1P

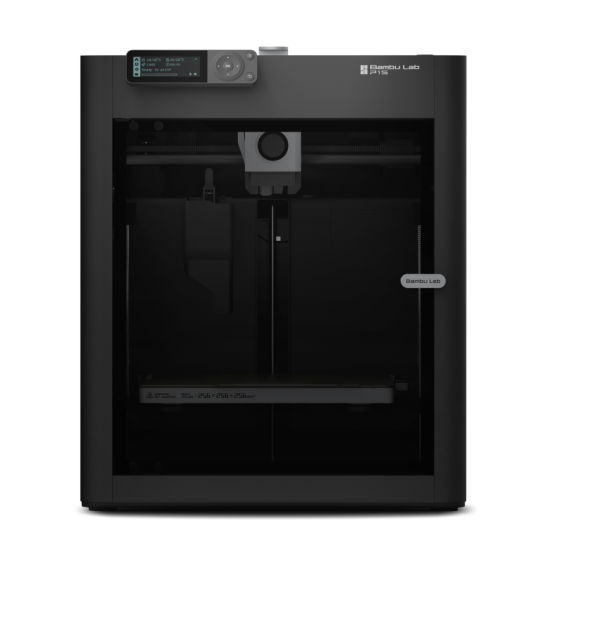

P1S
Body
Build Volume: 256 x 256 x 256 mm³
Chassis: Welded Steel
Shell:
Enclosed(Plastic & Glass)
Speed
Max Speed of Toolhead: 500 mm/s
Max Acceleration of Toolhead: 20 m/s²
Toolhead
Hot End: All-Metal
Nozzle: Stainless Steel
Max Hot End Temperature: 300℃
Toolhead Cable:
Enhanced toolhead cable with cable chain
Cooling & Filtration
Control Board Fan: Closed Loop Control
Chamber Temperature Regulator Fan: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
Air Filter: Activated Carbon Filter
Supported Filaments
PLA, PETG, TPU, PVA, PET: Ideal
ABS, ASA: Ideal
PA, PC: Capable

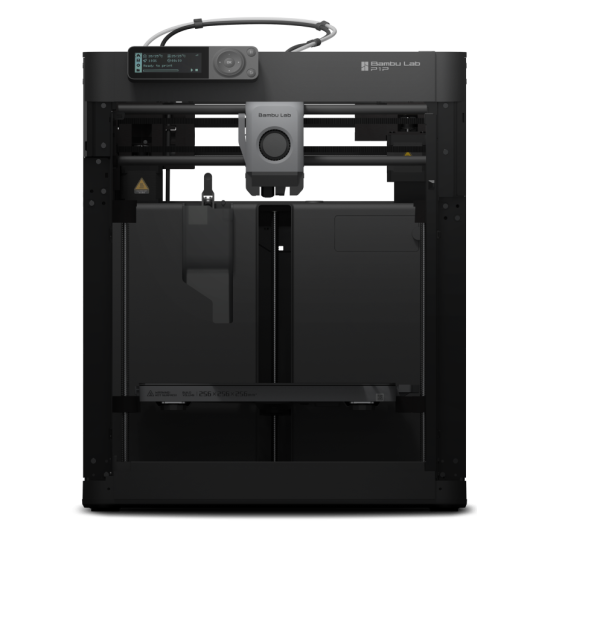

P1P
Body
Build Volume: 256 x 256 x 256 mm³
Chassis: Welded Steel
Shell:
Open frame(Printable Modplates Available)
Speed
Max Speed of Toolhead: 500 mm/s
Max Acceleration of Toolhead: 20 m/s²
Toolhead
Hot End: All-Metal
Nozzle: Stainless Steel
Max Hot End Temperature: 300℃
Toolhead Cable:
Standard toolhead cable
Cooling & Filtration
Control Board Fan: Optional
Chamber Temperature Regulator Fan: Optional
Auxiliary Part Cooling Fan: Optional
Air Filter: Optional
Supported Filaments
PLA, PETG, TPU, PVA, PET: Ideal
ABS, ASA: Capable
PA, PC: Capable

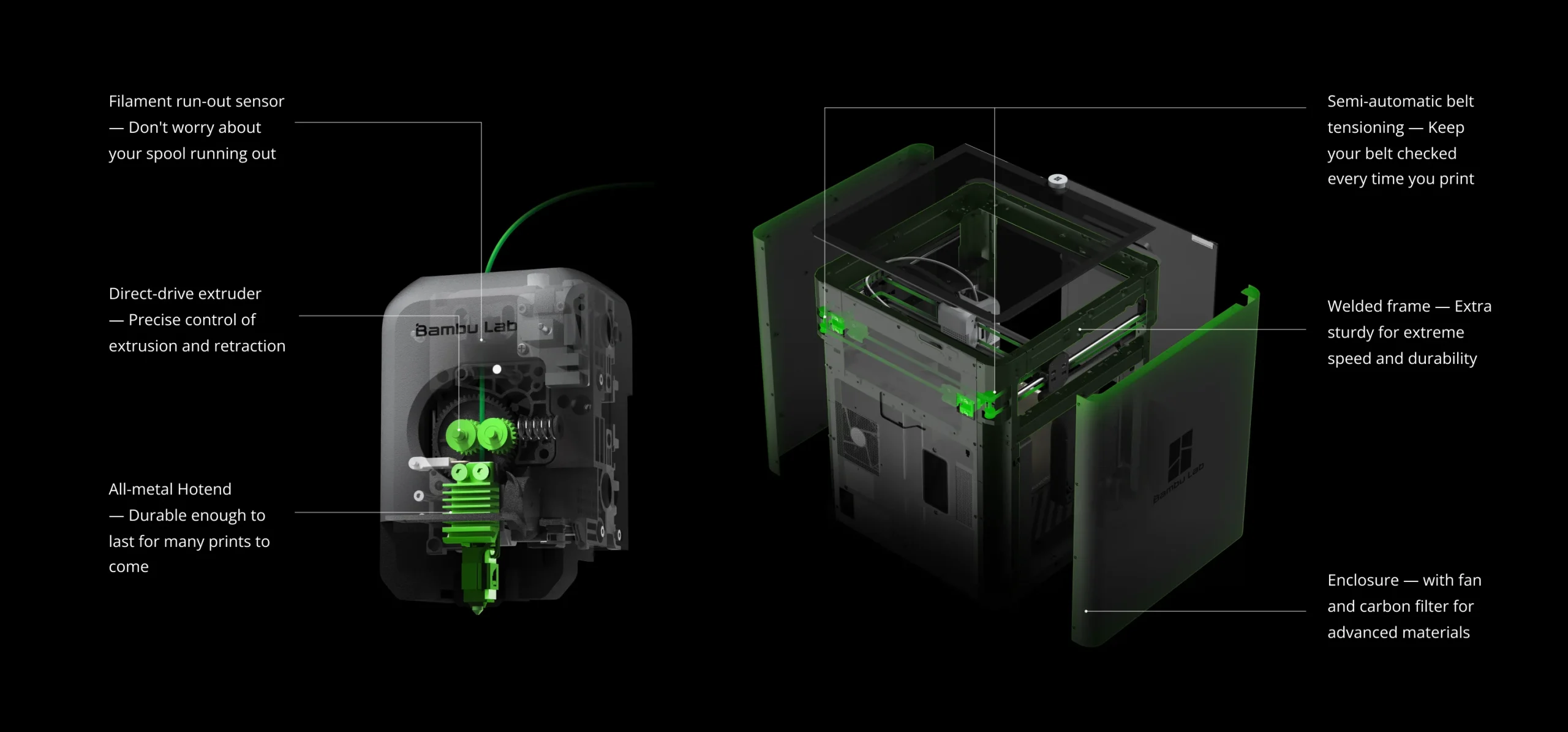

Expand printing possibilities with Bambu Official Enclosure
Compared to the P1P, the P1S offers a fully enclosed printing chamber and a more powerful cooling solution, which includes an Auxiliary Part Cooling Fan for cooling prints, a Chamber Regulator Fan to stabilize the inner chamber temperature, and a Control Board Fan to assist in cooling the control board. Furthermore, we have equipped it with an activated carbon filter to provide a solution for printing filaments such as ABS that are prone to emitting odors and harmful gases during the printing process.
Advanced Technologies
All-metal Hotend
Durable material made to support long-time 3D printing filaments including ABS, carbon fiber at high temperatures. It provides accurate and smooth extrusion to achieve quality printing performance.
Power Loss Recovery
Worry-free from a power cut-off, you can resume the print from where it left off.
Fans with Speed Feedback
The speed feedback sensor monitors the fan's speed ensuring that the fan is able to operate at its optimal speed at all times.
Time-lapse Video (In progress)
Upgrade P1P with a chamber camera to easily monitor the prints on Bambu Studio and App (Available only on the local network). Multi-mode timelapse video is under development.
Semi-automatic Belt Tensioning
The tension of the belt is essential for ensuring dimensional accuracy. Resonance frequency identification runs every time to help maintain the correct tension.
Filament Run-out Sensor
Eliminate the problem of empty spools during printing. Change filament when empty and Resume.

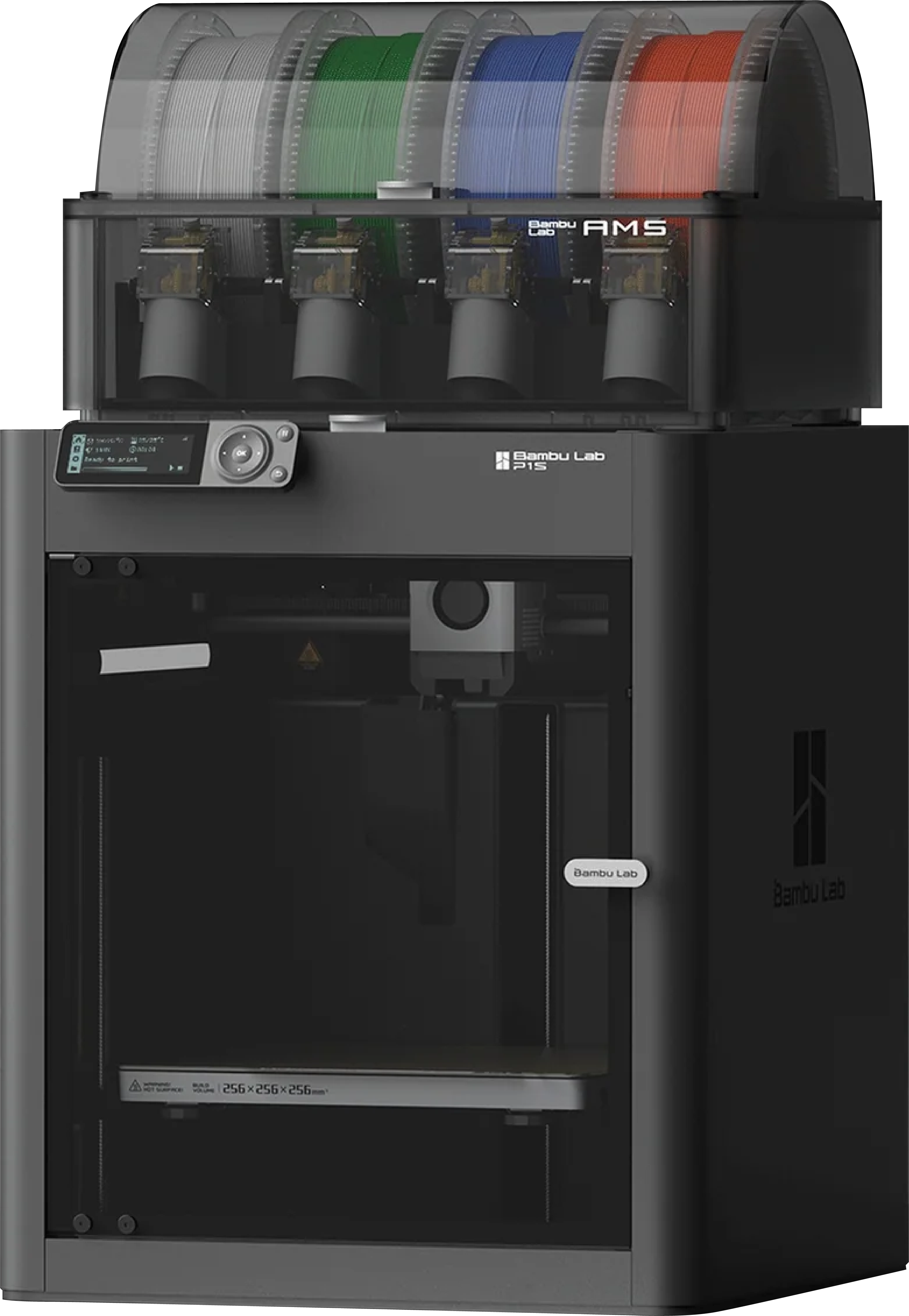

Bambu Lab P1S
Designed for Efficiency

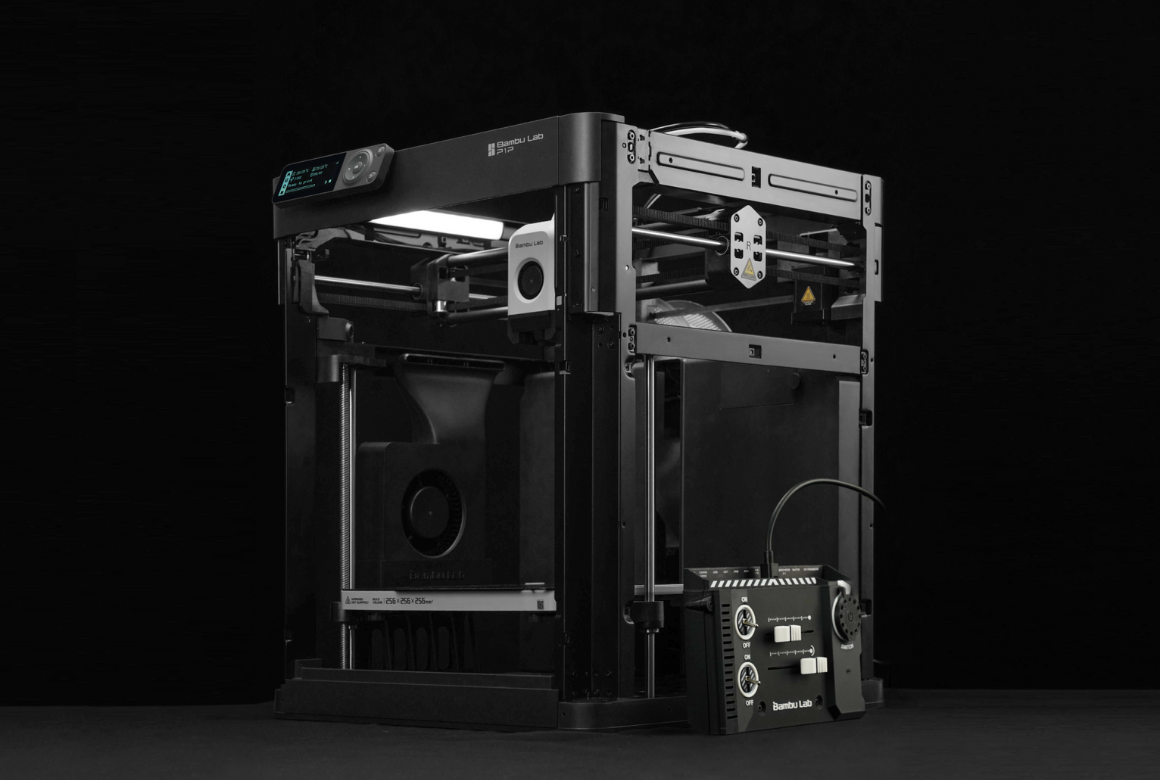

CoreXY up to 20000 mm/s² Acceleration
The Bambu Lab P1P inherits the proven kinematics and motion control system of the Bambu Lab Flagship printer. It prints with a top speed of 500 mm/s, the acceleration from zero to 500 mm/s takes just 0.025 seconds.
Vibration Compensation & Pressure Advance
The active vibration compensation (XY) algorithm and pressure advance guarantees extra smoothness and gets you good prints.

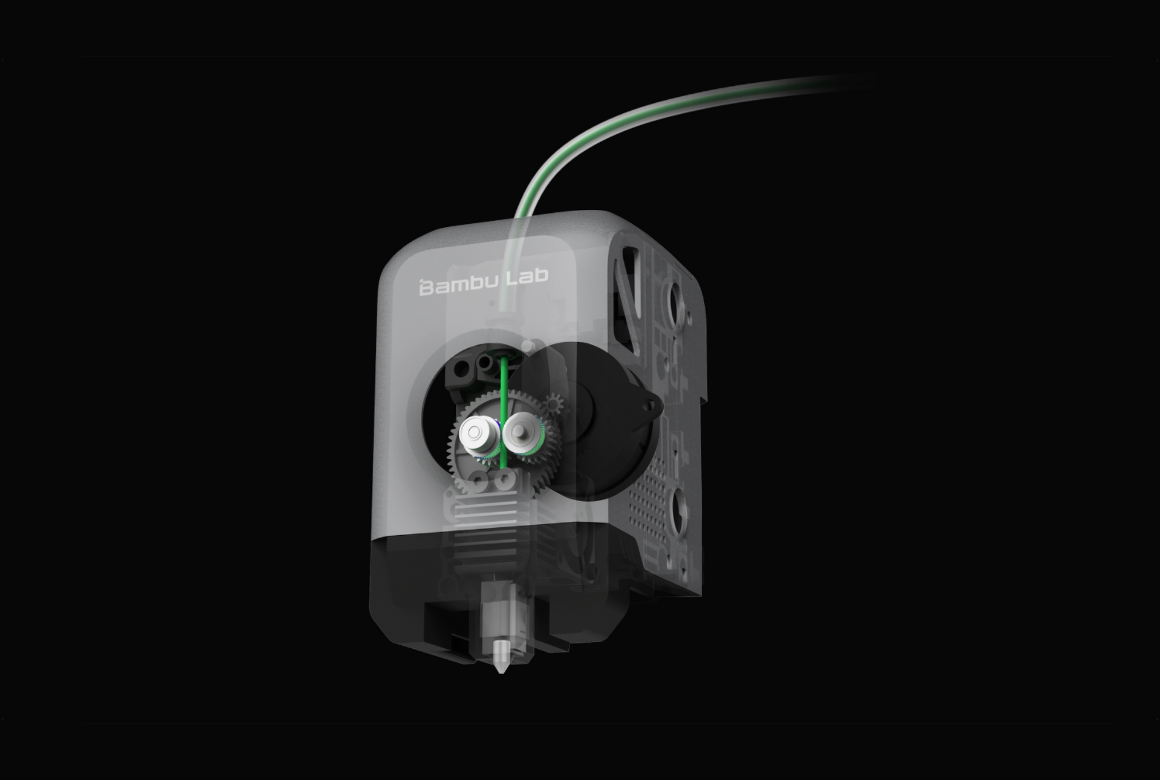

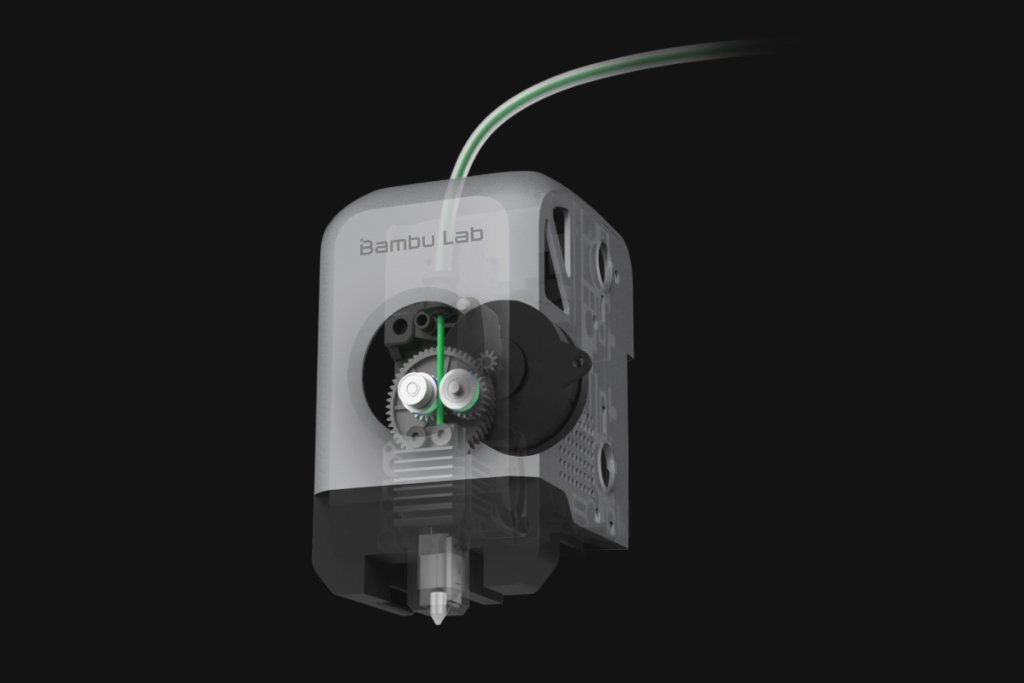

Direct-drive Extruder
With the design that the motor is directly connected to the extruder, P1P has better control on the extrusion and retraction of flexible filaments. Precise and consistent extrusion for smooth and no-blur prints.

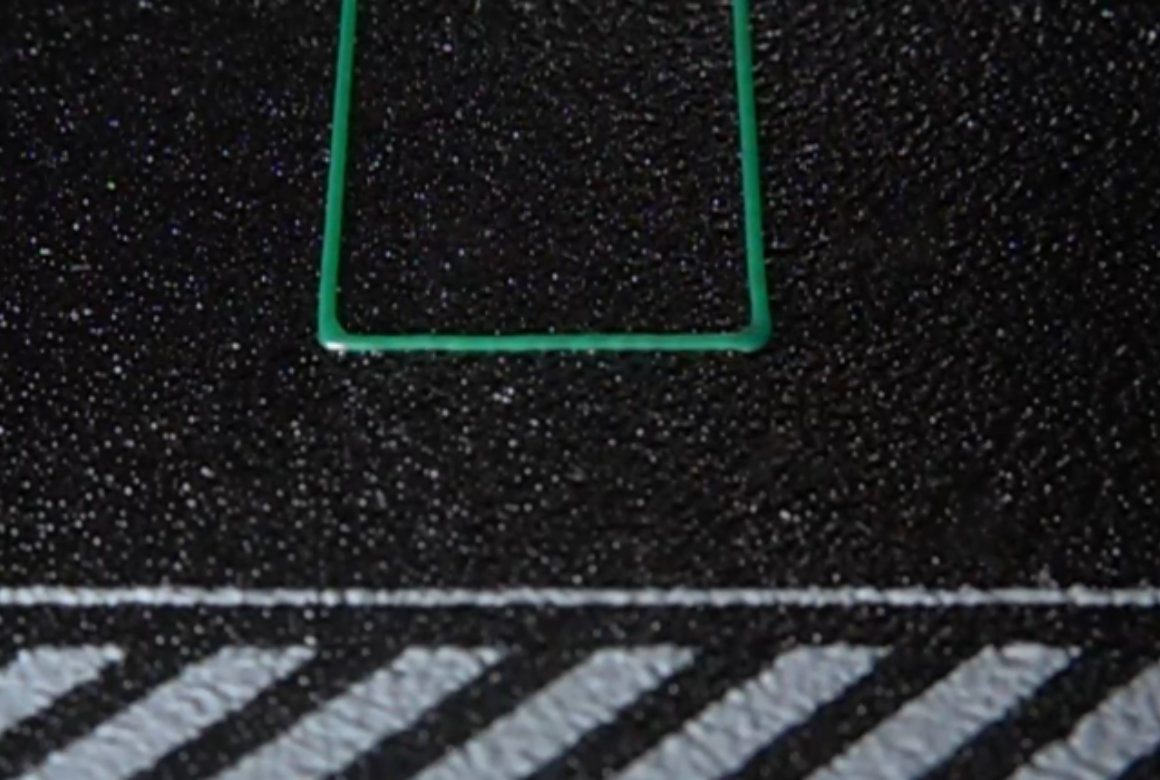

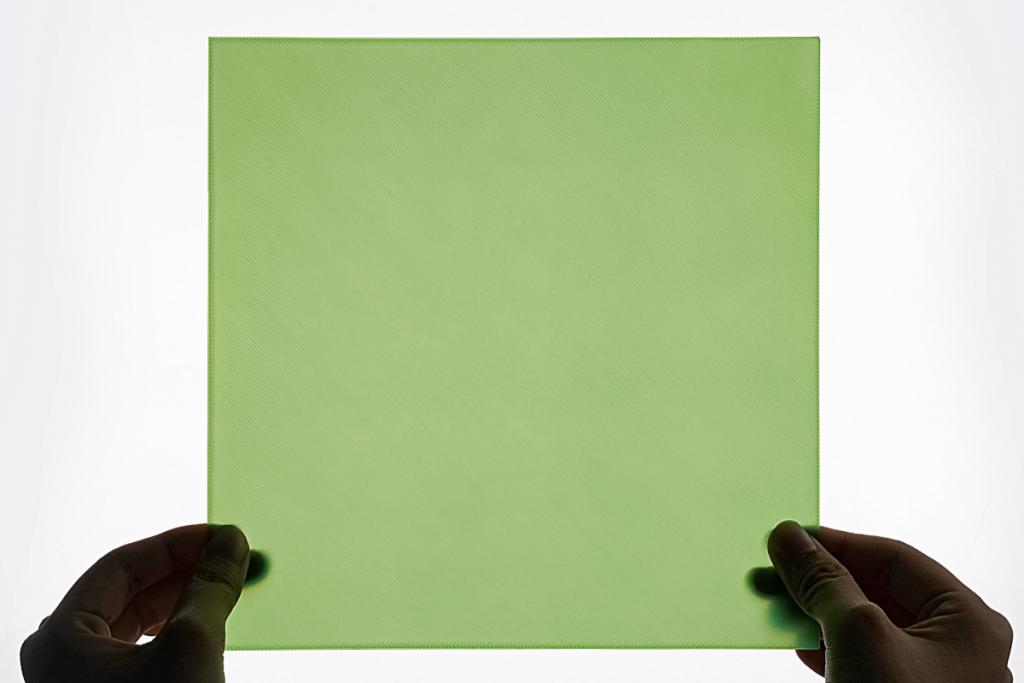

Succeed with a
Perfect First Layer
The automatic bed leveling(ABL) sensor calibrates and levels the bed properly, making you a perfect first layer for every 3D print.

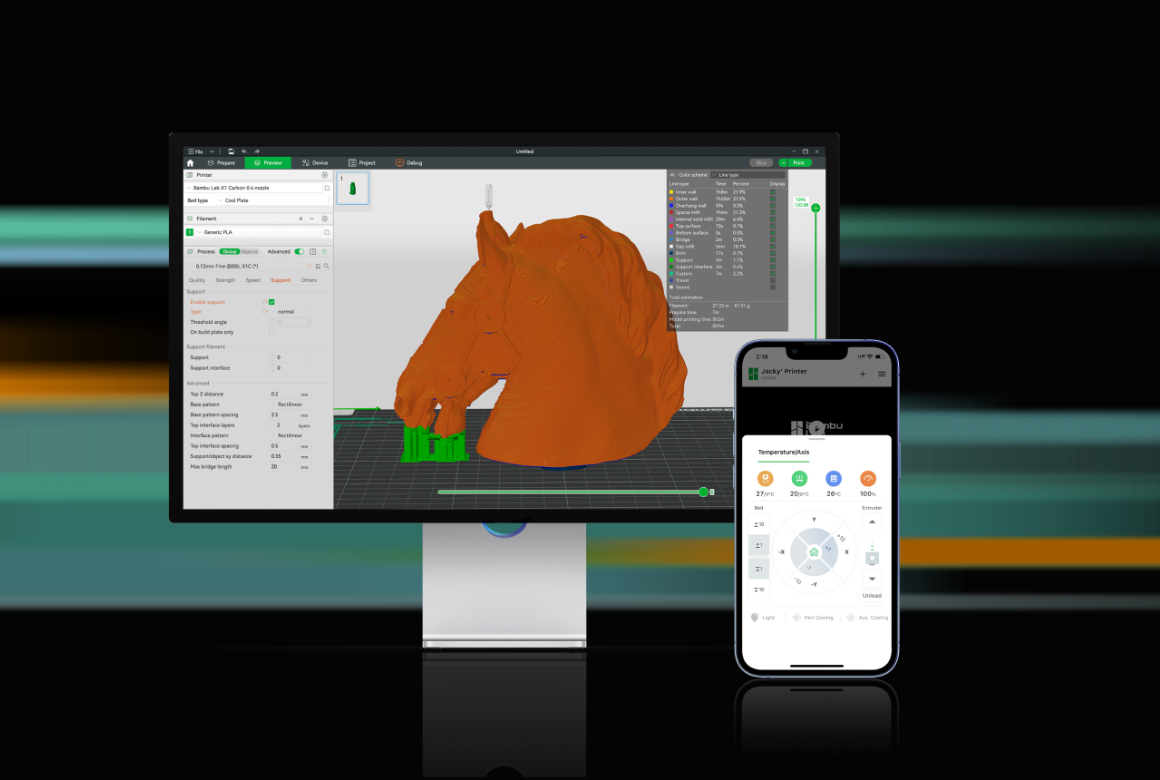

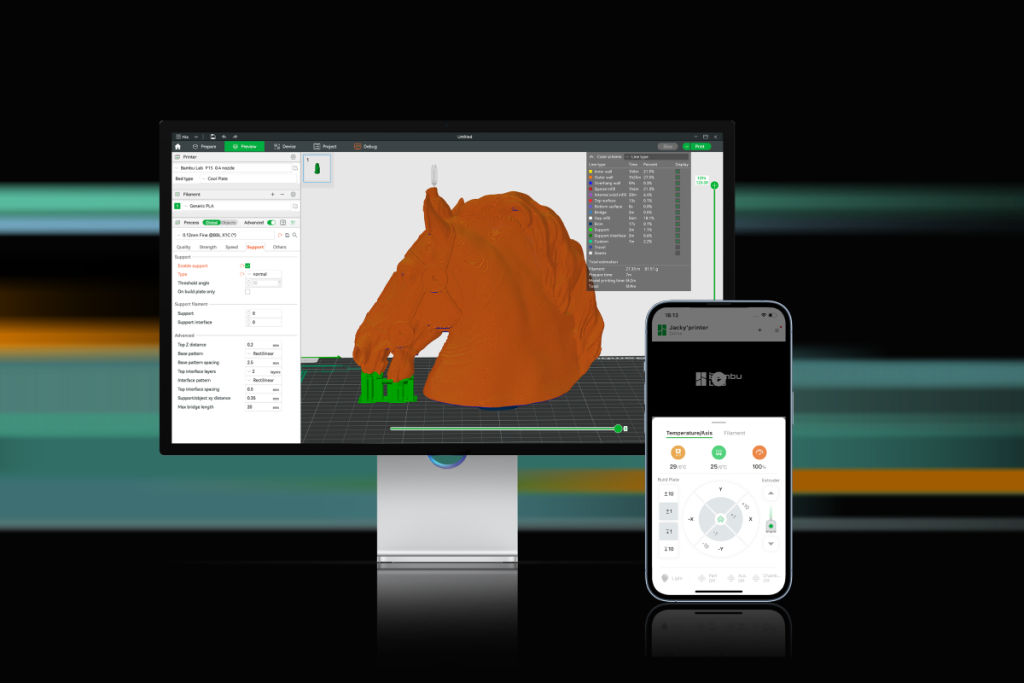

Bambu Studio &
Bambu Handy
Connect with Bambu slicing software and mobile app to control your printer and monitor the prints.
Customizable Printer
Customize and 3D print the side panels of P1P with your magic touch. Select a Modplate template to print or design your one-of-a-kind side panels.
Bambu Lab P1P
Designed for Efficiency
CoreXY up to 20000 mm/s² Acceleration
The Bambu Lab P1P inherits the proven kinematics and motion control system of the Bambu Lab Flagship printer. It prints with a top speed of 500 mm/s, the acceleration from zero to 500 mm/s takes just 0.025 seconds.
Vibration Compensation & Pressure Advance
The active vibration compensation (XY) algorithm and pressure advance guarantees extra smoothness and gets you good prints.
Direct-drive Extruder
With the design that the motor is directly connected to the extruder, P1P has better control on the extrusion and retraction of flexible filaments. Precise and consistent extrusion for smooth and no-blur prints.
Succeed with a
Perfect First Layer
The automatic bed leveling(ABL) sensor calibrates and levels the bed properly, making you a perfect first layer for every 3D print.
Bambu Studio &
Bambu Handy
Connect with Bambu slicing software and mobile app to control your printer and monitor the prints.
Customizable Printer
Customize and 3D print the side panels of P1P with your magic touch. Select a Modplate template to print or design your one-of-a-kind side panels.
Frequently asked questions
Compared to the P1P, the P1S offers a fully enclosed printing chamber and a more powerful cooling solution, which includes an Auxiliary Part Cooling Fan for cooling prints, a Chamber Regulator Fan to stabilize the inner chamber temperature, and a Control Board Fan to assist in cooling the control board. Furthermore, we have equipped it with an activated carbon filter to provide a solution for printing filaments such as ABS that are prone to emitting odors and harmful gases during the printing process.
For more information, please visit our official website or refer to the product specifications on our official wiki.
P1S is based on the P1P with an improved cooling solution and enclosure. However, it is not recommended to directly print fiber-reinforced filaments such as glass fiber or carbon fiber, before an extruder and hotend upgrade is done. The X1-Carbon is equipped with Micro lidar for advanced AI detection functions and offers more convenient and efficient screen interaction.
