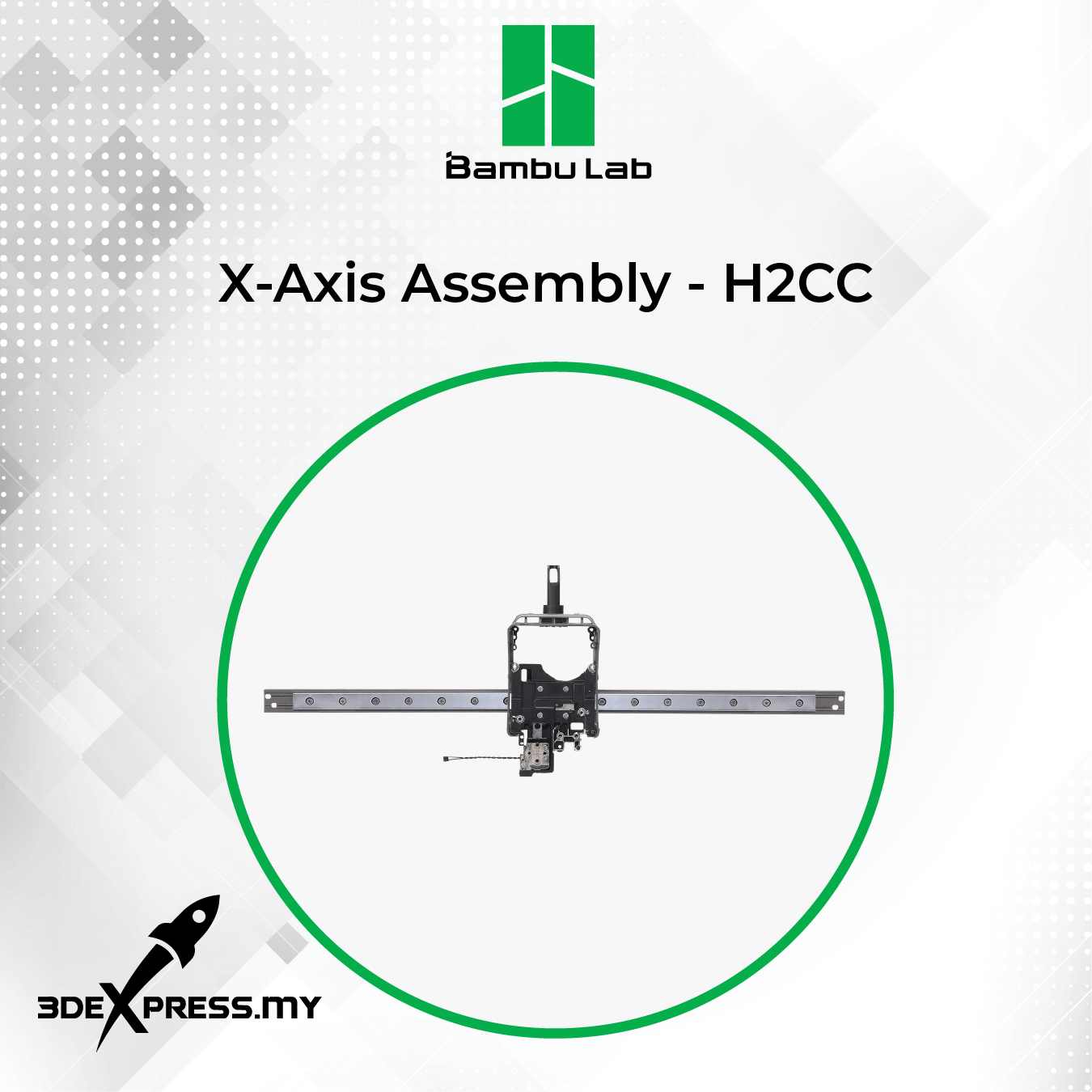

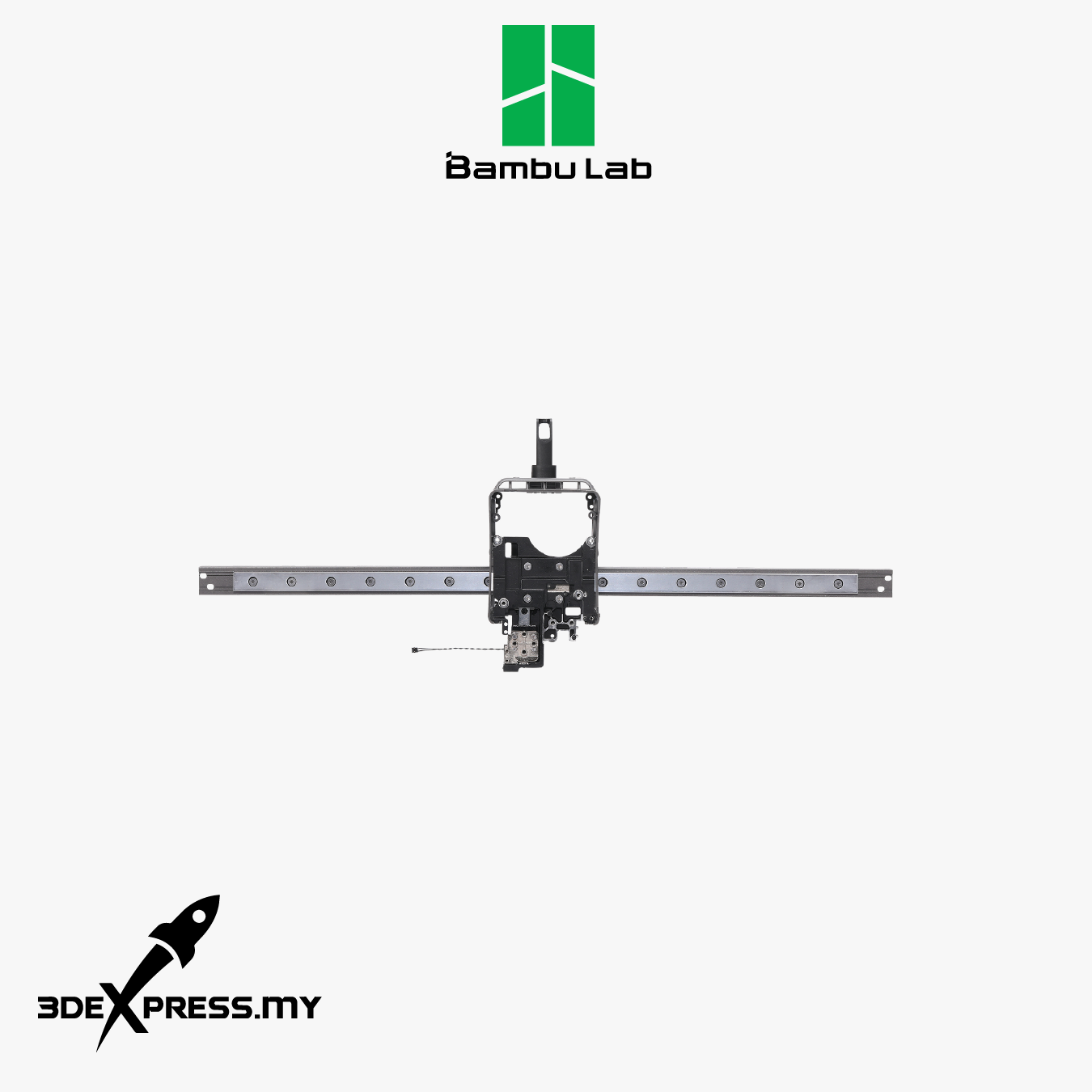

Bambu Lab Spare Parts X-Axis Assembly – [H2CC]

Overview

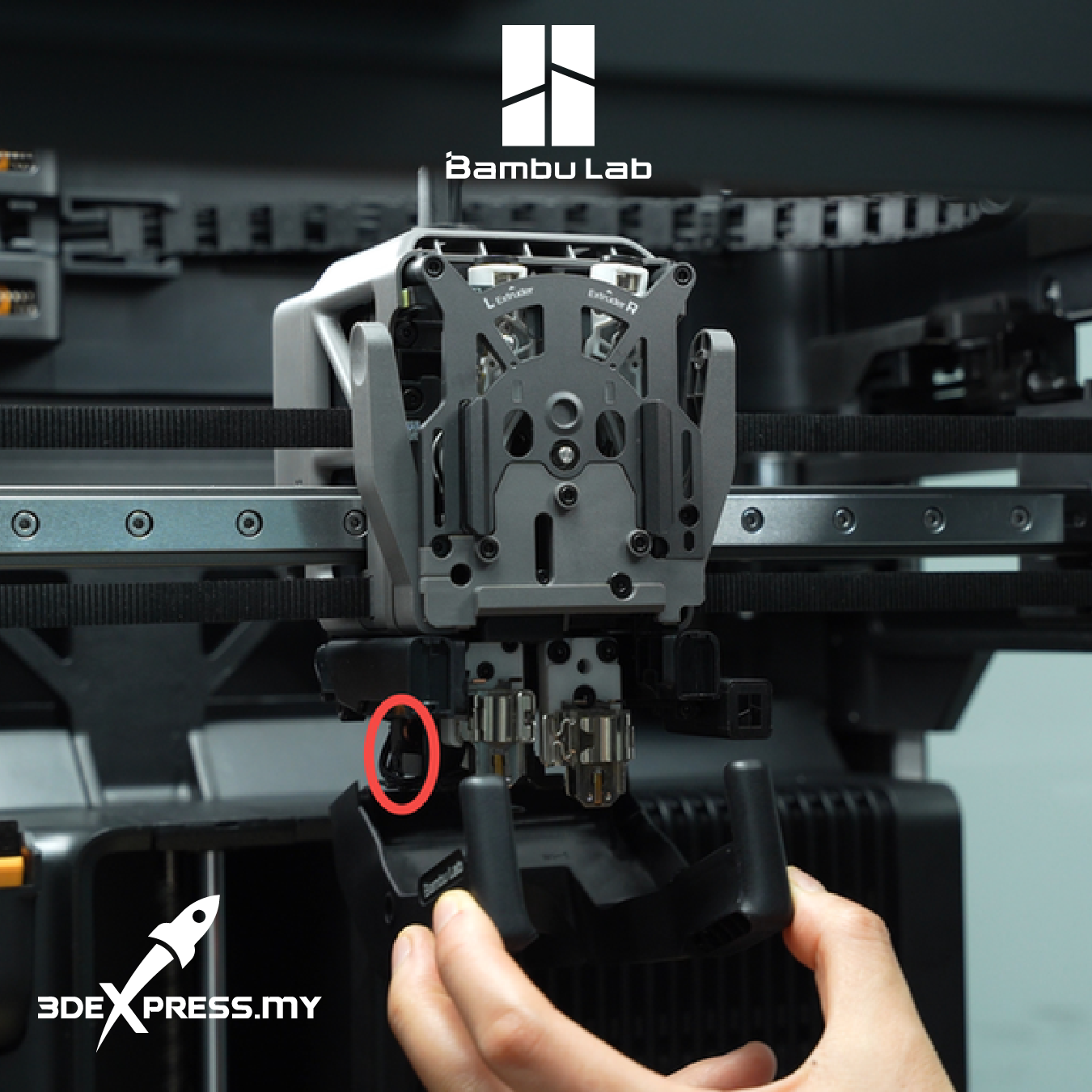

The X-Axis Assembly consists of the linear rail, lifting bracket, and the toolhead middle frame, and it controls the toolhead’s movement along the X-axis.

Installation

Learn more about H2D/H2C X-Axis Assembly on Bambu Lab Wiki.

Learn more about H2S X-Axis Assembly on Bambu Lab Wiki.

In the Box

For H2D and H2D Laser

– X-Axis Assembly*1
– Hex Screwdriver *1
– H2.0 Hex Wrench*1
– M3-6 Screw*4
– BT2-5 Screw*2
– BT3-8 Screw*4
– M3-8 Screw*6

For H2S and H2S Laser

– X-Axis Assembly*1
– Screwdriver*1
– Screws Kit

For H2C and H2C Laser

– H2.0 Hex Wrench*1（short）*1
– H2.0 Hex Wrench*1（long）*1
– M3x6 Screw *4
– BT2x5 Screw *2
– BT3x8 Screw *4
– M3x8 Screw *6

Compatibility

H2 Series
