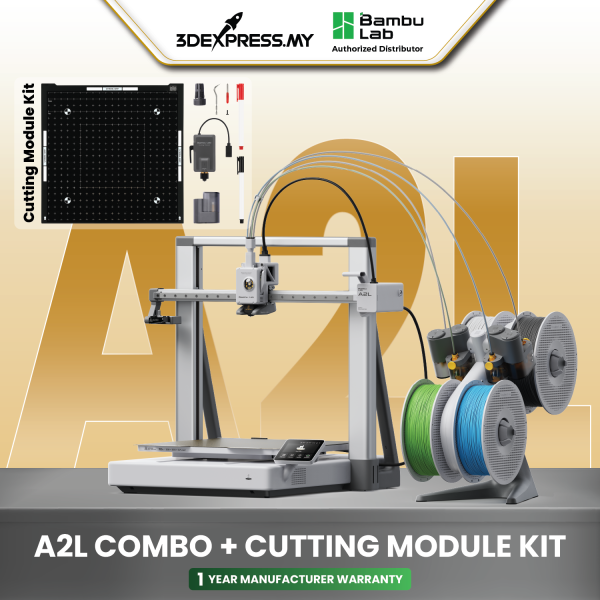

Bambu Lab A2L – Technical Specifications
| Body | Build Volume (W*D*H) |
330mm*320mm*325 mm
|
| Chassis |
Aluminum and Steel
|
|
|
Outer Frame
|
Plastic
|
|
|
Dimensions and Weight
|
Physical Dimensions |
544mm*529mm*505 mm
|
| Net Weight |
12.8 kg
(Gross Weight: A2L 17.0 kg, A2L AMS Combo 18.9kg)
|
|
| Toolhead | Extruder Gear |
Hardened Steel
|
| Nozzle |
Stainless Steel
|
|
| Max Nozzle Temperature | 300 °C | |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm | |
|
Filament Cutter
|
Built-in
|
|
| Filament Diameter | 1.75 mm | |
| Extruder Motor |
Servo Extruder Motor
|
|
| Heatbed |
Build Plate Material
|
Flexible Steel Plate
|
|
Included Build Plate Type
|
Textured PEI Plate
|
|
| Supported Build Plate Type |
Textured PEI plate, Engineering Plate, Cool Plate SuperTack
|
|
| Max Heatbed Temperature | 80 ℃ | |
| Speed | Max Speed of Toolhead | 500 mm/s |
| Max Acceleration of Toolhead | 10 m/s² | |
|
Max Flow for Hotend
|
28 mm³/s
(Test parameters: 150 mm round model with a single outer wall; Bambu Lab PLA Basic; 220 °C printing temperature)
|
|
|
Cooling
|
Part Cooling Fan
|
Closed Loop Control
|
|
Hotend Cooling Fan
|
Closed Loop Control
|
|
|
Supported Filament Type
|
PLA, PETG, TPU, PVA
|
Suitable for Printing
|
|
PLA-CF、PETG-CF
|
Suitable for Printing (Replace with Hardened Steel Nozzle)
|
|
| Sensor |
Camera
|
Low-frame-rate camera, up to 1080P, supports timelapse photography
|
|
Filament Run Out Sensor
|
Supported
|
|
|
Filament Tangle Sensor
|
Supported
|
|
|
Filament Odometry
|
Supported
|
|
|
Power Loss Recovery
|
Supported | |
|
Clumping Detection
|
Supported | |
| Electrical Requirements* | Voltage |
High-voltage Version: 200-240 VAC, 50/60 Hz
Low-voltage Version: 100-120 VAC, 50/60 Hz
|
| Max Power* |
High-voltage Version: 1000 W@220 V
Low-voltage Version: 1000 W@110 V
|
|
|
Please purchase the version corresponding to your region’s voltage. Using the Printer in different regions, you may need to purchase a power adapter accordingly.
|
||
|
Environment Requirement
|
15 -30 °C
|
|
| Electronics | Touchscreen |
3.5 inch, 240*320 Touchscreen
|
| Storage |
32g MicroSD Card
|
|
| Control Interface |
Touchscreen, mobile App, PC App
|
|
|
Motion Controller
|
Single-core Cortex-M4 Processor & Single-core Cortex-M7 Processor
|
|
|
Communication
|
Wi-Fi, Bambu-Bus
|
|
| Software | Slicer |
Bambu Studio
Supports third-party slicers which export standard Gcode, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
|
| Supported Operating System |
MacOS、Windows、Linux
|
|
|
Network Control
|
Ethernet
|
Not Available
|
|
Wireless Network
|
2.4G Wi-Fi
|
|
| Wi-Fi | Operating Frequency |
2412 – 2472 MHz (CE/MIC)
2412 – 2462 MHz (FCC)
2400 – 2483.5 MHz (SRRC)
|
| Wi-Fi Transmitter Power (EIRP) |
<23 dBm (FCC), <20 dBm (CE/SRRC)
|
|
| Wi-Fi Protocol |
IEEE 802.11 b/g/n
|
|
|
*The printer’s voltage specifications vary by sales region. Before use, check the label next to the power socket to ensure the supply voltage matches the indicated voltage.
*To ensure the heatbed quickly reaches the needed temperature, the printer will maintain maximum power for about 3 minutes.
|
||
|
Cutting Module
|
Cutting Area
|
300mm * 300 mm
|
|
Drawing Area
|
300mm * 255 mm
|
|
|
Supported Pen Diameter
|
10.5 mm–12.5 mm
|
|
|
Cutting Mat Type
|
LightGrip and StrongGrip Cutting Mats
|
|
|
Blade Type
|
45°*0.35 mm
|
|
|
Blade Pressure Range
|
50 gf–600 gf
|
|
|
Max Cutting Thickness
|
0.5 mm
|
|
|
Blade and Pen Recognition
|
Supported
|
|
|
Cutting Mat Type Detection
|
Supported
|
|
|
Supported Image Type
|
Bitmap and Vector Images
|
|
|
Supported Material Type
|
Paper, PVC, vinyl, leather, and more
|
|
