Overview
Installation
Learn more about the replacement of Bambu 4-in-1 PTFE Adapter on Bambu Lab Wiki.
Compatibility
X1 Series and P1 Series
In the Box
Bambu 4-in-1 PTFE Adapter *1
Instructions for use

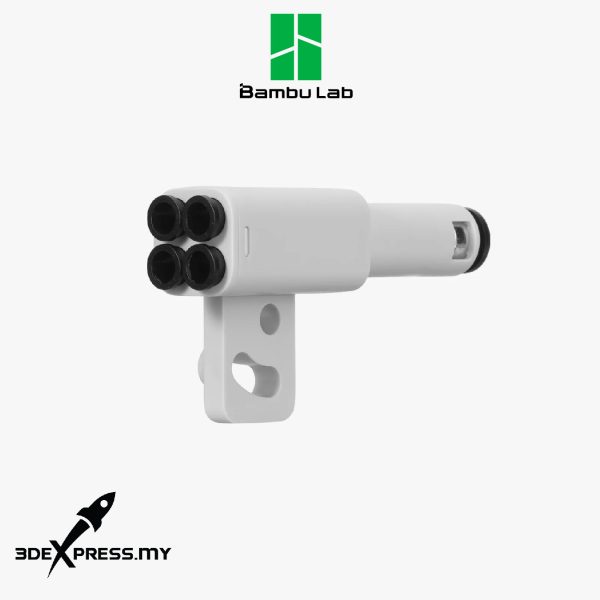

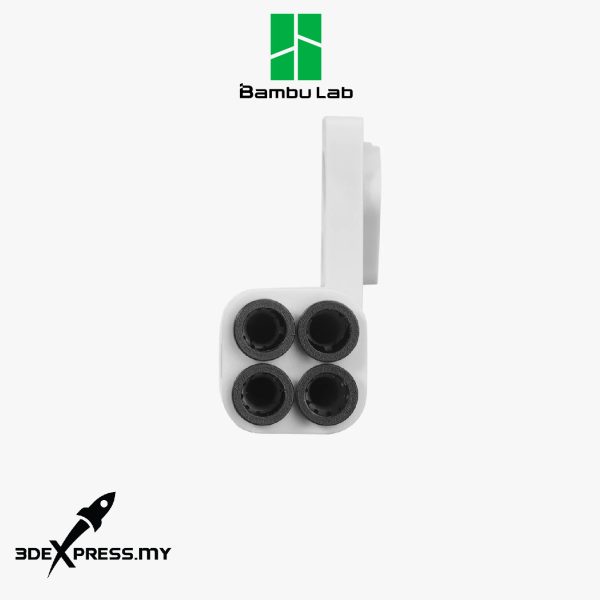

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.
1. When using AMS:
– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Connect the PTFE tube from the buffer output to one of its IN ends. – Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
2. When the AMS is not being used:
– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
Product Specification
| Color | Black, White | Materials | Plastic, Metal |
| Package weight | 0.03 kg | Package Size | 60*60*30 mm |
